HS 65-SERIES

High Speed Strapping Machine

Precision Engineering:

A high-quality, high-speed arch type strapping machine, the PPI HS 65-Series bundler offers performance at an affordable price. A wide tension adjustment range makes it ideal for a number of applications including: magazines & newsprint bundles, metal profiles, wood flooring, boxes & totes, etc. Machines available for 5, 6, 9 or 12mm strap.

Benefits:

  • High speed (up to 65 straps per minute) can be configured for different operating modes to increase productivity.
  • Moveable control panel allows operation from either side of the machine.
  • Wide range of tension adjustment.
  • Straps even on small & non-compressible loads.
  • Uses low-cost embossed polypropylene strap.

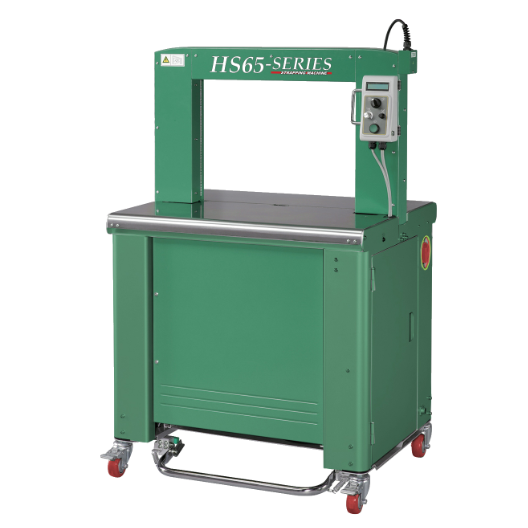

HS 65-Series Strapping Machine

Features:

HS65 Control Head

The compact HS 65-Series strapping head has no belts, clutches or pulleys. It is designed with up-to-date technology with fewer moving parts. 30% fewer parts requires fewer adjustments and fewer wear components requiring less maintenance.

HS 65 Foot Bar

Ergonomically designed and user friendly foot bar and adjustable table leg height ranging between 820mm and 920mm.

HS 65 Control Box

Turnable operating control panel located on the upper side of the machine for easy operator access whichever way the machine is situated in production.

Additional Features

  • One Piece Strap Chute
  • Sensor Controlled Heater
  • Jog Switch
  • Dispenser Release Switch
  • Auto Strap Ejector / Auto Strap Feeding
  • Low Voltage Control
  • Single Foot Bar

Technical Specs:

  • Strap Width: 5mm, 6mm, 9mm
  • Table Height: 820mm W – 920mm H

(32.28″ – 36.22″)

  • Standard Arch: 550mm W x 400mm H

(21.65″ W x 15.75″ H)

Available in Other Sizes

  • Power Supply: 110V or Single Phase 60HZ

Options:

  • Photo Eye Switch
  • Dual Foot Bar
  • Palm Pad Switch
  • Stainless Steel Frame
  • Small Package Version Available
