ORION CONSTELLATION

Line of Orbital Wrappers

Precision Engineering:

is ideal for those customers who…

  • Could benefit from an automated wrapping system.
  • Are on a limited budget.
  • Have limited space.
  • Want a machine that’s simple to use, quick to install and relatively easy to relocate

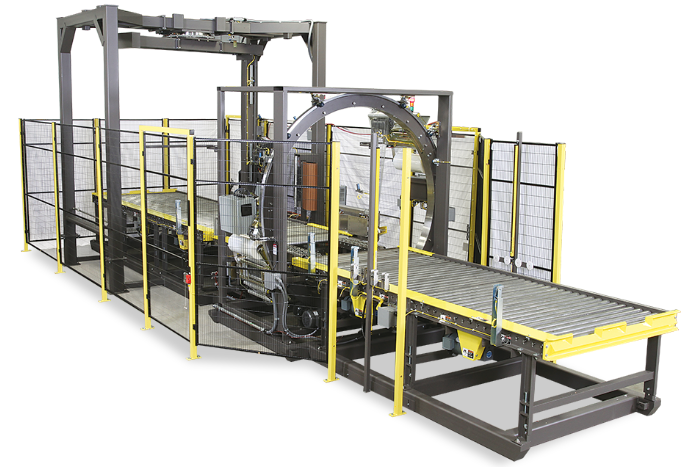

Orion Orbital Stretch Wrapper

Features:

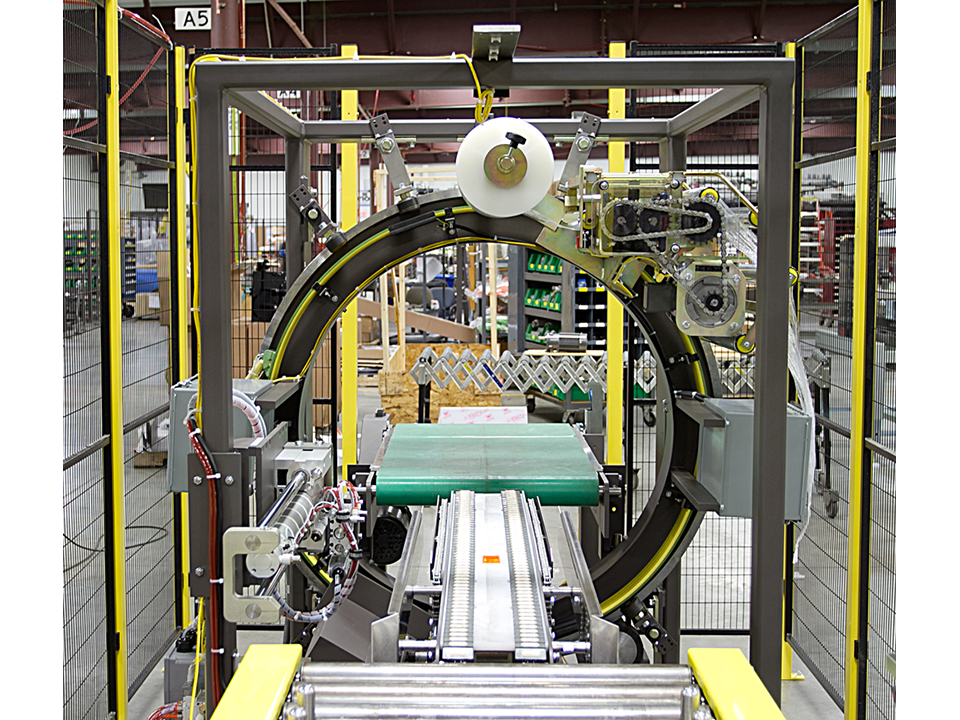

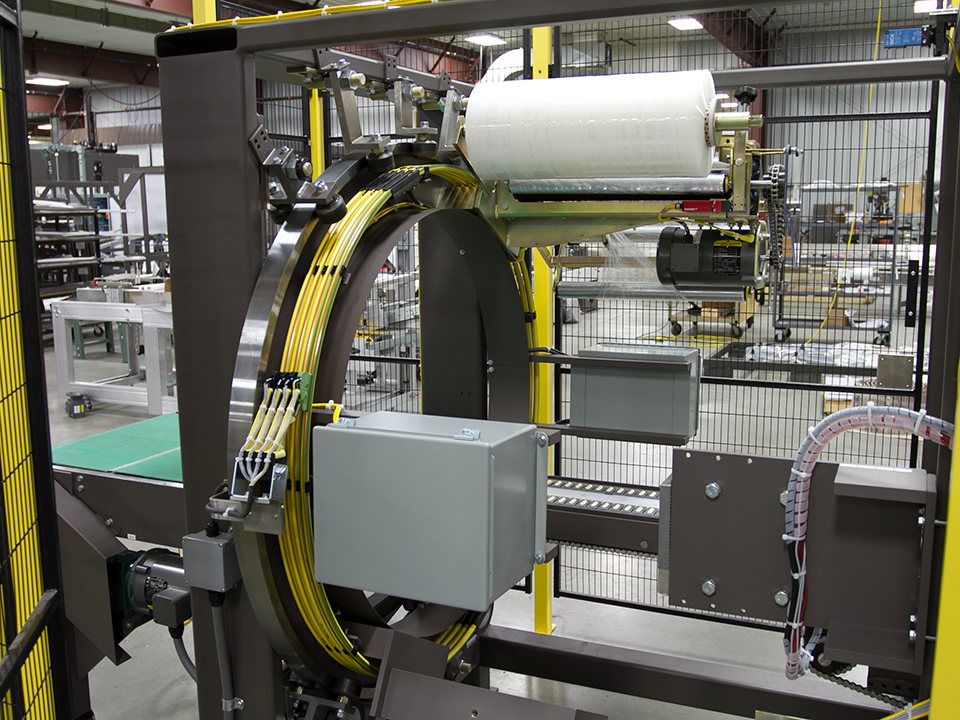

Orion Orbital Carriager

The Constellation is equipped with the Insta-Thread™ powered pre-stretch film delivery system and are compatible with all high quality stretch films from 10” to 30” in width.

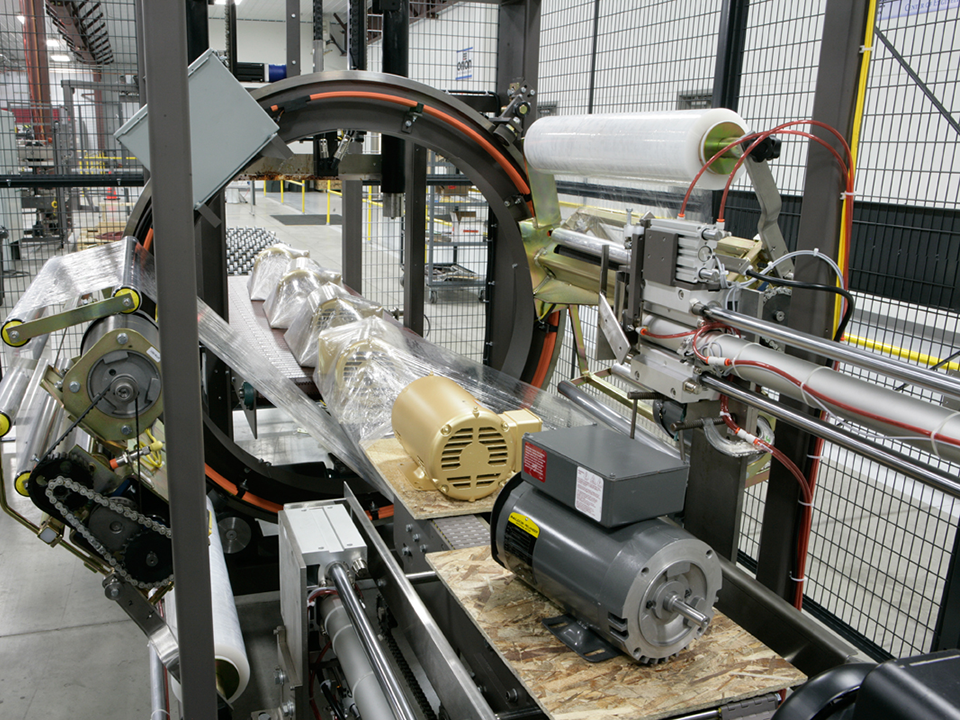

Orion Orbital 395

Constellation comes with film treatment options that include automatic clamping/cutting for individual wrapping of single loads, flying cut-off for open end/high speed wrapping, and heat seal for total encapsulation.

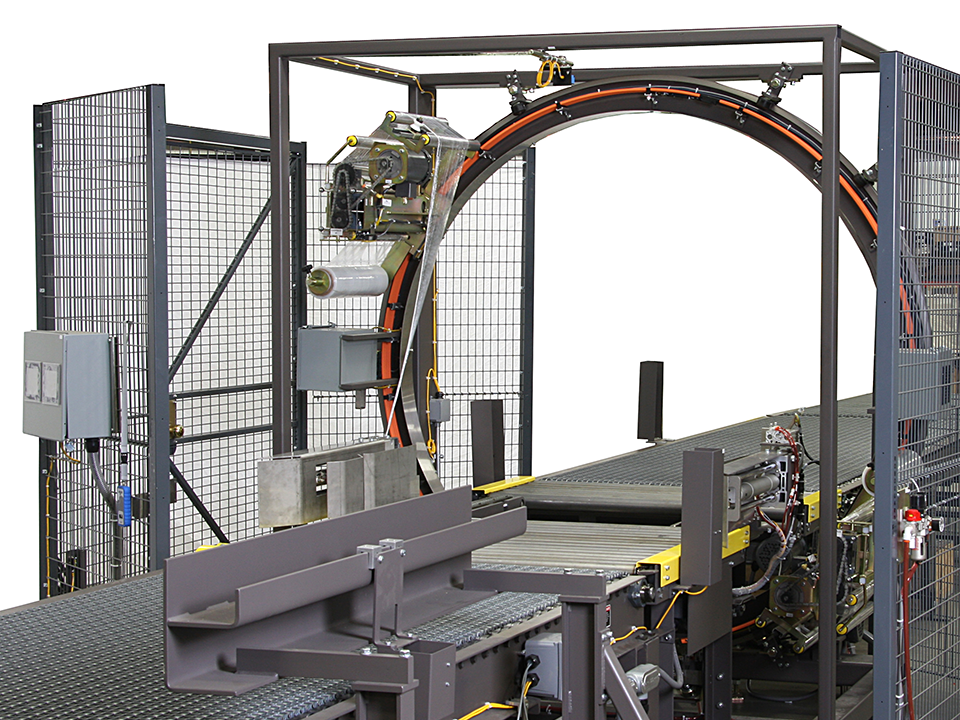

Orion Orbital Six Sides

Featuring 6 sided wrapping. Totally wrap a load while locking it to the pallet by combining an orbital with an automatic wrapping system.

Additional Features

  • Automatically Adjusts for Various Load Widths & Heights
  • Allen Bradley PLC Controller
  • Rotational Safety Photoeyes Stops Machine if Beam is Broken

Technical Specs:

  • Ring Sizes: 15” – 80”
  • Load Dimensions Maximum: 48”W x 48”L
  • Load Dimensions Minimum: 2”W x 42”L
  • Load Maximum Length: 36”-48”
  • Maximum Weight: 2,000 lbs
  • Film Pre-Stretch: 245%
  • Power Supply: 208/120V, 3ph, 60Hz, 20Amp

Options:

  • Dual Carriage

Orion Constellation Brochure  Constellation Brochure
