ORION SENTRY

Low Profile Turntable Semi-Automatic Wrapper

Economical and Efficient!

Is ideal for those customers who…

  • Want an affordable yet full featured wrapping solution.
  • Use a mix of pump trucks, walkies and fork lifts.
  • Have low to medium volume wrapping needs.
  • Want the ability to quickly relocate the machine.
  • Want to wrap loads weighing up to 4,000lbs.

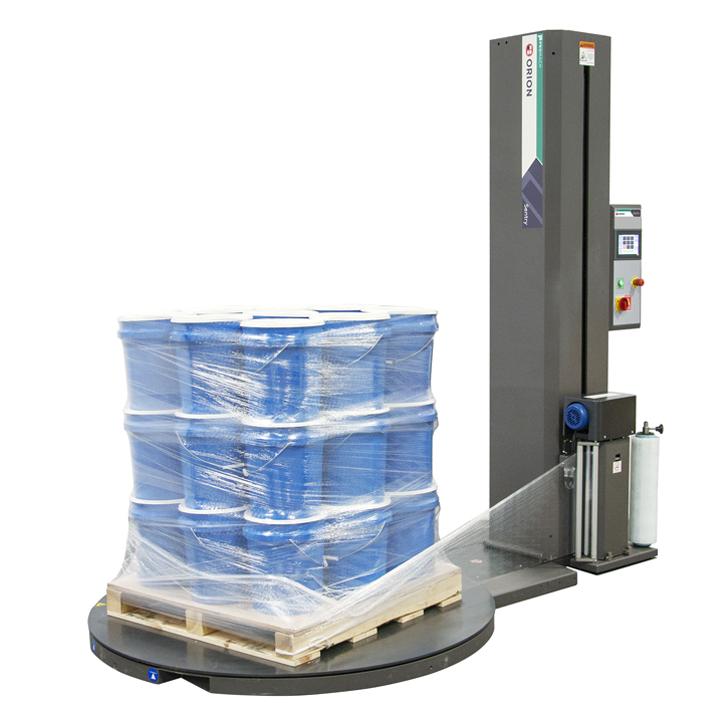

Orion Sentry Stretch Wrapper

Features:

Orion Sentry Control Panel

The Sentry control panel features a multi-language display, knobs for turntable speed, carriage speed, and film tension, power light, start button, E-stop button and power disconnect.

Orion Sentry Turn Table

Structural steel plate and tube is used to provide a robust and durable base. Soft-start rotation prevents unstable loads from toppling when cycle begins.

Orion Sentry Carriage

The powered prestretch film carriage elongates stretch film 200% prior to wrapping. This not only reduces material costs but strengthens the film for a better wrap. A safety plate at the bottom of the carriage stops movement if an obstacle is detected.

Additional Features

  • Variable Speed Carriage
  • Folklift Portable
  • Multi-Language Display
  • 12 Point Roller Cam Turntable Support for Reliable Operation
  • Variable Speed Carriage
  • Password Protected Settings

Technical Specs:

  • Machine Dimensions: 96”L x 60”W x 96”H
  • Maximum Load Dimensions: 52”L x 52”W x 80”H
  • Maximum Load Weight: 4,000 lbs
  • Film Pre-Stretch: 200%
  • Power Supply: 110V, 1ph, 60hz

Options:

  • Loading Ramp
  • Tower Extension
