HS65AS-Series

Automatic High Speed Stainless Steel Strapping Machine

Precision Engineering:

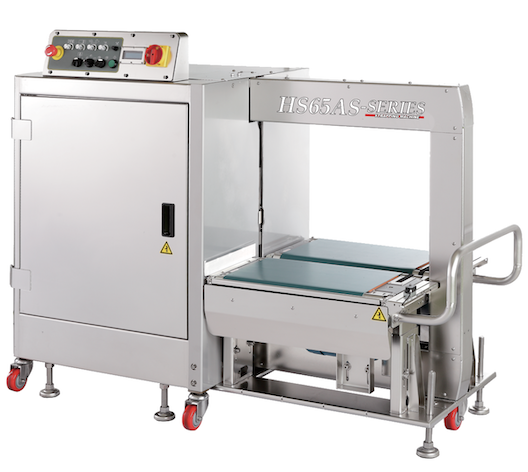

The PPI automatic HS 65AS-Side Seal wash down machine is ideal for harsh working environments, such as meat, poultry and marine food processing. The machine includes a stainless steel frame and rust resistant/corrosion resistant parts. The waterproof design is suitable for water and wash down spray. Machines available for 5, 6, 9 or 12mm strap.

Benefits:

  • High speed (up to 60 straps per minute) can be configured for different operating modes to increase productivity.
  • Stainless steel to protect from water & wash down spray.
  • Maintenance friendly removable guides.
  • Downward tension force for most reliable and consistent tension & seal.
  • Uses low-cost embossed polypropylene strap.

Technical Specifications:

Strap Width: 5mm, 6mm or 9mm
Table Height: 700mm – 1000mm
Strap Tension: 1kg – 32kg
Standard Arch: 1250mm W x 450mm H

(49.21″ W x 17.72″ H)

Available in Other Arch Sizes

Speed: 33 Straps per Minute Single Strap
Power Supply 1ph: 110V, 220V, 230V 50/60Hz
Power Supply 3ph: 220V, 380V, 400V 50/60Hz
