LPA Flex Series
Low Profile Automatic Turntable Wrapper
Precision Engineering:
Is ideal for those customers who…
- Use a mix of pump trucks, walkies and fork lifts.
- Need a higher level of durability than an entry–level turntable machine.
- Want to reduce/eliminate the need for operators to leave their vehicle.
- Need more productivity but can’t justify an expensive automated system.
- Want to wrap loads weighing up to 5,000 lbs
Features

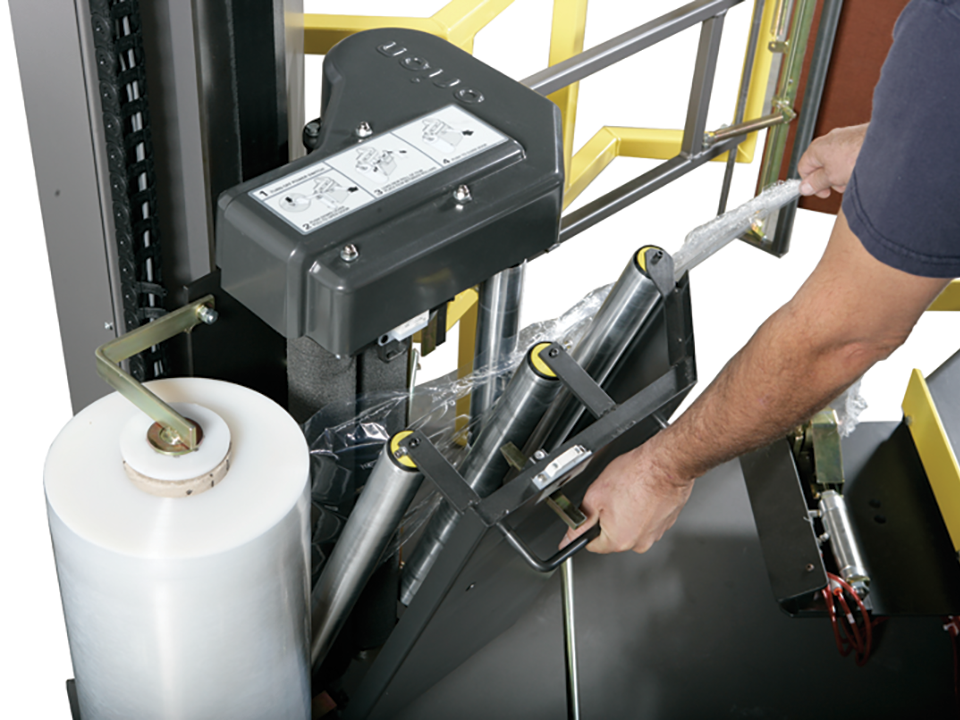

- Insta-Thread™ Film Carriage
- 15 RPM Variable Speed with “soft-start”

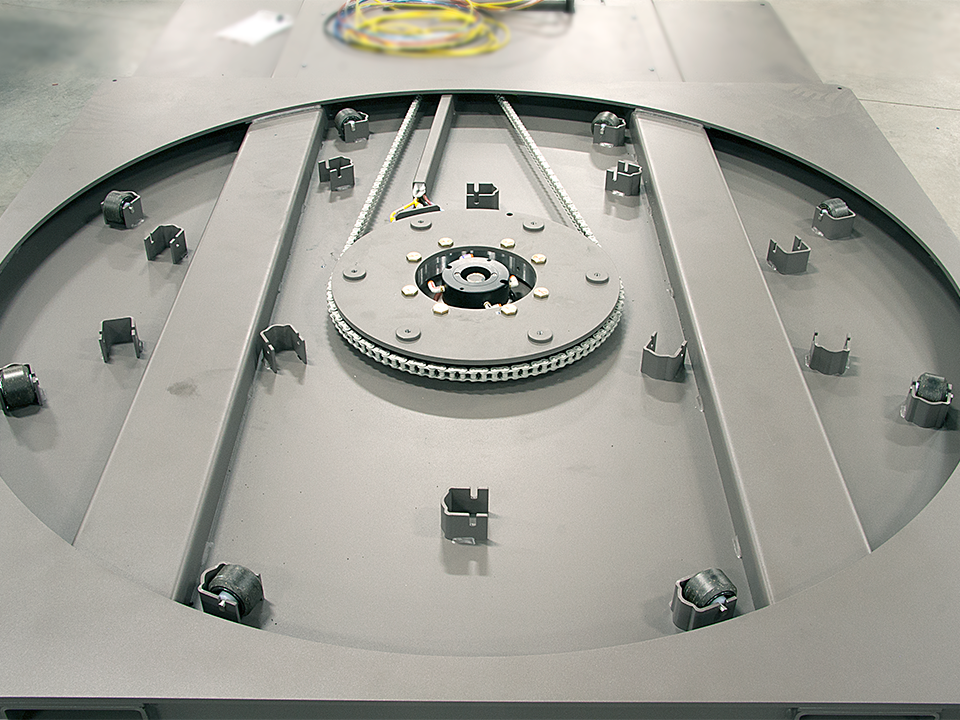

- Full Surround Deck Protects Turntable
- Easy to Load Film from Side
- 63” Diameter Turntable for loads up to 50” x 50”
- AC/VFD Motors Reduce Maintenance
- Forklift Portable from Front and Rear
Options:
- Loading Ramp
- 6,000 lb Turntable Capacity
- 110″ Tower Extension
Technical Specifications:
Machine Dimensions: | 100″ L x 68″ W x 95″ H |
Maximum Load Dimensions: | 50″ L x 50″ W x 80″ H |
Maximum Load Weight: | 5,000 lbs |
Film Pre-Stretch: | 260% |
Turntable Speed: | 15 RPM Variable Speed with ‘soft-start’ |
Power Supply: | 110V, Single Phase, 60hz, Compressed Air |
