LPA Flex Series

Low Profile Automatic Turntable Wrapper

Precision Engineering:

Is ideal for those customers who…

  • Use a mix of pump trucks, walkies and fork lifts.
  • Need a higher level of durability than an entry–level turntable machine.
  • Want to reduce/eliminate the need for operators to leave their vehicle.
  • Need more productivity but can’t justify an expensive automated system.
  • Want to wrap loads weighing up to 5,000 lbs

Features

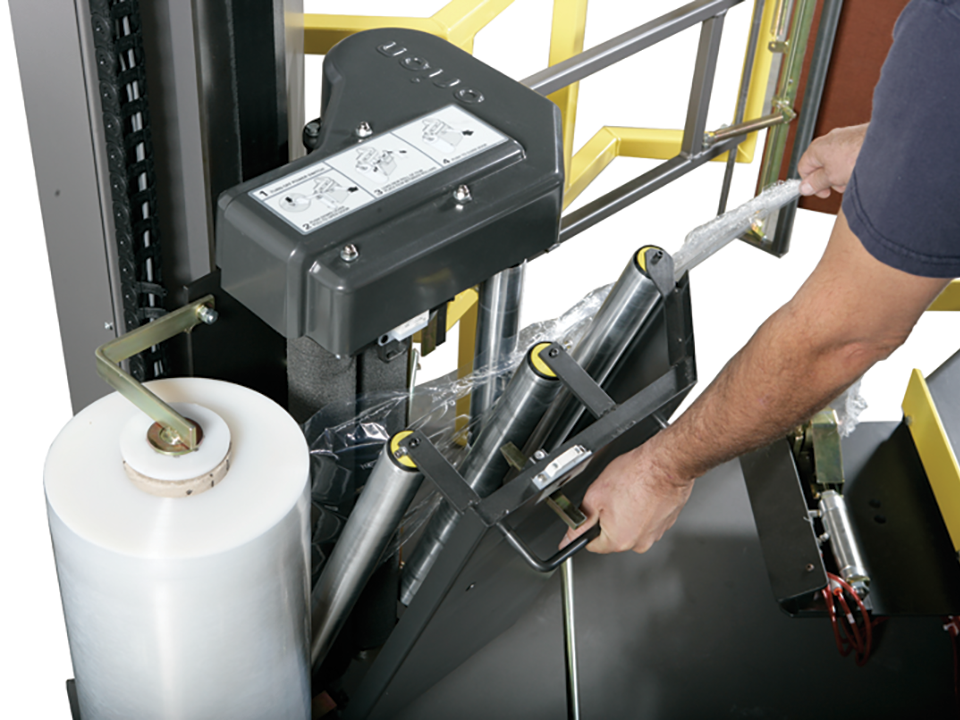

  • Insta-Thread™ Film Carriage
  • 15 RPM Variable Speed with “soft-start”

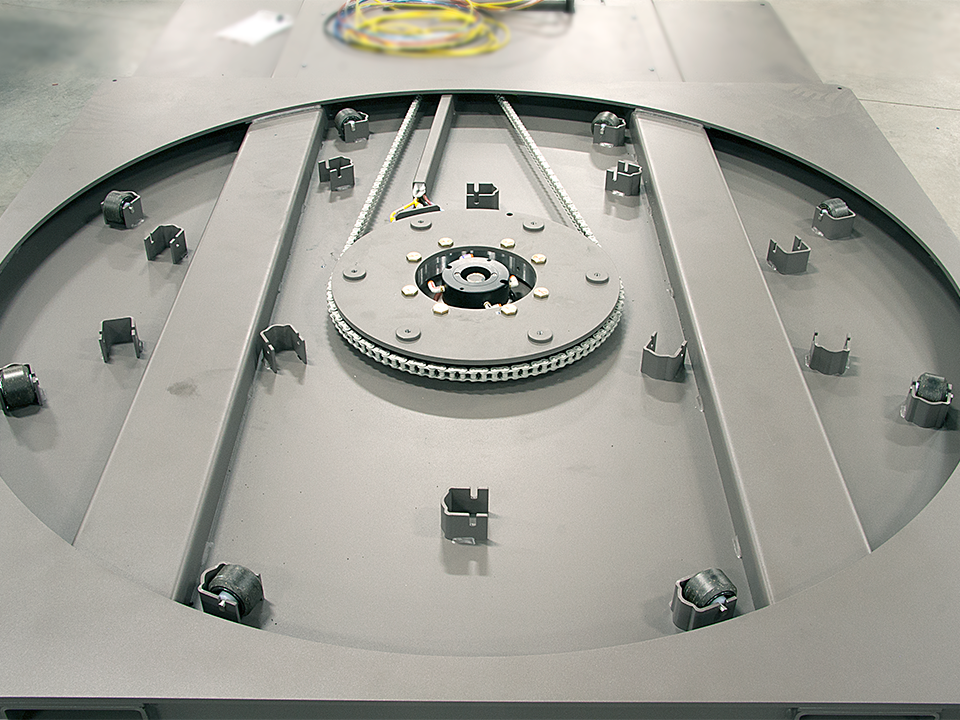

  • Full Surround Deck Protects Turntable
  • Easy to Load Film from Side
  • 63” Diameter Turntable for loads up to 50” x 50”
  • AC/VFD Motors Reduce Maintenance
  • Forklift Portable from Front and Rear

Options:

  • Loading Ramp
  • 6,000 lb Turntable Capacity
  • 110″ Tower Extension

Technical Specifications:

Machine Dimensions: 100″ L x 68″ W x 95″ H
Maximum Load Dimensions: 50″ L x 50″ W x 80″ H
Maximum Load Weight: 5,000 lbs
Film Pre-Stretch: 260%
Turntable Speed: 15 RPM Variable Speed with ‘soft-start’
Power Supply: 110V, Single Phase, 60hz, Compressed Air
