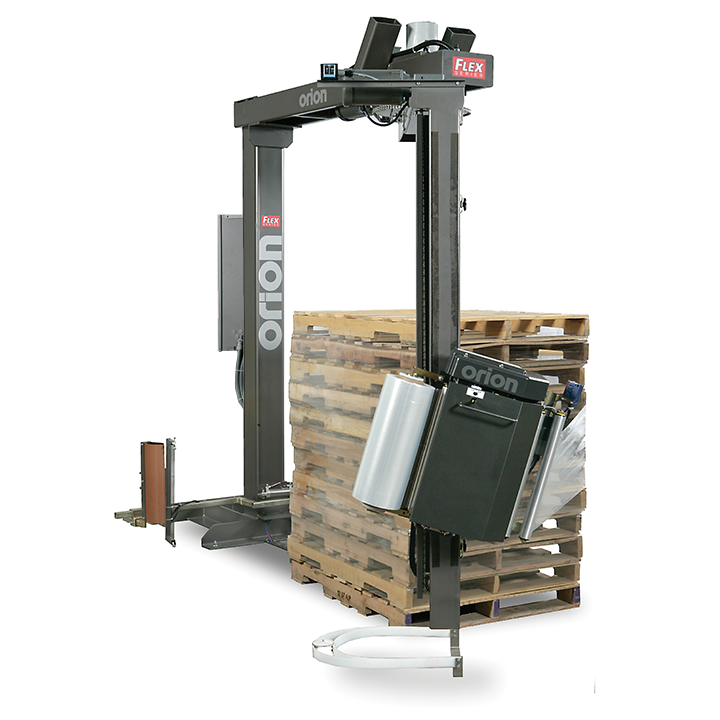

RTA Flex Series
Rotary Automatic Wrapper
Precision Engineering:
Is ideal for those customers who…
- Use a mix of pump trucks, walkies and fork lifts.
- Want to wrap very light, heavy or unstable loads.
- Want to integrate an existing floor scale with a wrapper.
- Need to do frequent cleaning/floor washdown.
- Want to reduce/eliminate the need for operators to leave their vehicle.
Features
- Insta-Thread™ Film Carriage
- 16 RPM Variable Speed Tower
- No Maximum Load Capacity

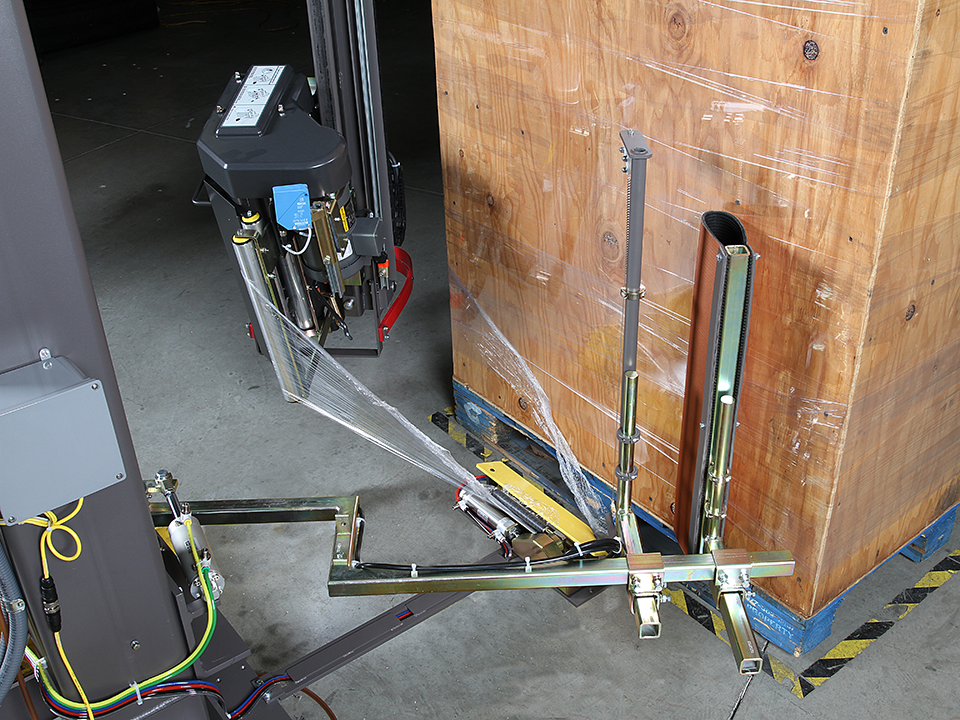

- Automatic Film Tail Attach/Cut/Press
- Start Cycle with Hanging Lanyard

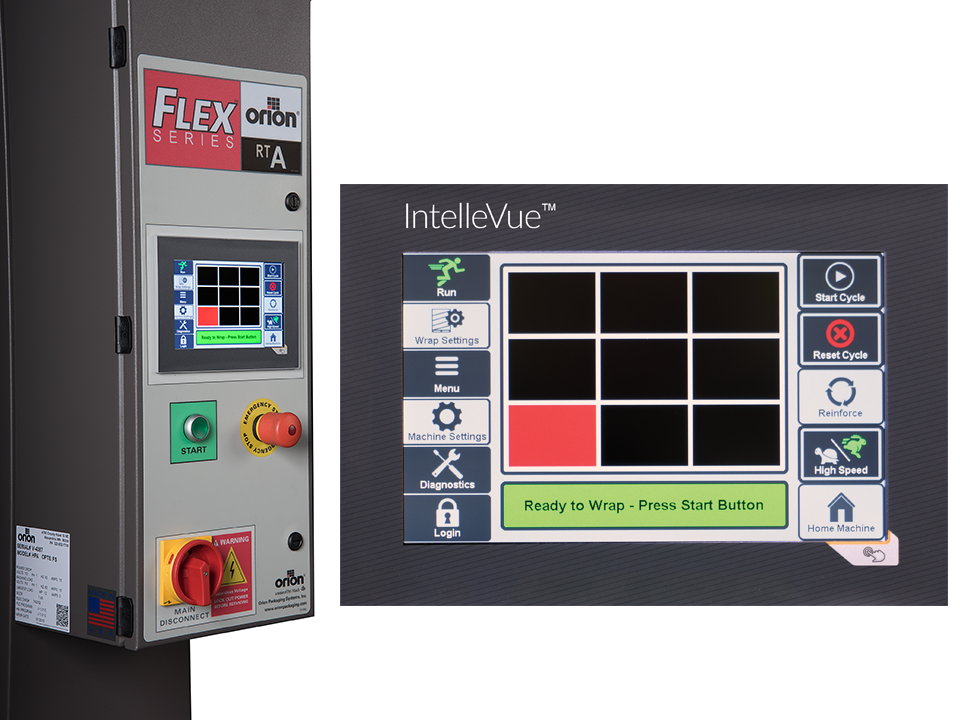

- Floor Mounted Control Panel for Flexibility
- Precision Ring Bearing Drive Systems
- Heavy Duty Chain and Sprocket Drive
- Tower Mounted Obstacle Sensing System
- AC/VFD Motors for Reduced Maintenance
Options:
- 30” InstaThread™ Film Carriage
- Tall Load Options (Loads up to 95″ or 110″)
- Large Load Options (Loads up to 65″ x 65″, 92″ diagonal)
- Second Leg Gantry Style Frame
Technical Specifications:
Maximum Load Dimensions: | 48″W x 48″L x 80″H (68″ Diagonal) |
Maximum Load Weight: | Unlimited |
Film Pre-Stretch: | 260% |
Production Speed: | Up to 40 – 50 loads per hour |
Power Supply: | 115V, Single Phase, 60hz, Compressed Air |
